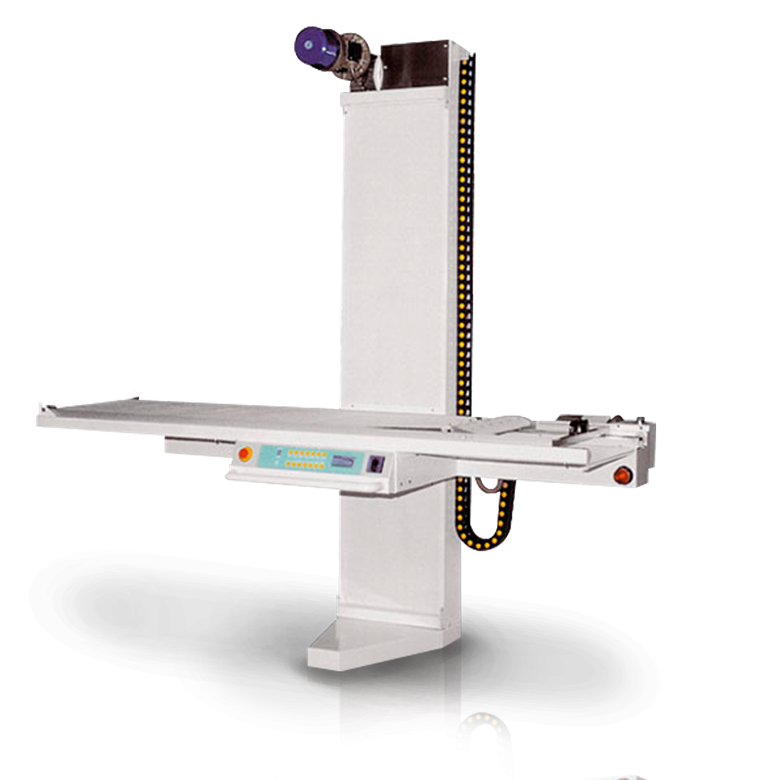

Single Column Oven Loader SPM100

SPM 100 manual oven loader with floor rail. All vertical, horizontal and oven loading movements are manual; Loading width = 60cm.
Caratteristiche:

  • Manual lifting with counterweight;
  • Manual oven loading;
  • Manual sideways movement

Single Column Oven Loader SPM200

SPM 200 semi-automatic oven loader with floor rail. Horizontal translation and oven loading movements are manual, whereas the vertical movement is motorized; loading width = 60cm.
Features:

  • Motorized lifting with automatic stop at the height chosen using the selector;
  • Manual oven loading;
  • Manual sideways movement

Single Column Oven Loader SPM300

SPM 300 semi-automatic oven loader with floor rail, complete with tilting rack. Horizontal translation and oven loading movements are manual, whereas the the vertical movement and oven loading are motorized. The tray is reset manually after oven loading. Loading width = 60cm.
Features:

  • Motorized lifting with automatic stop at the height chosen using the selector;
  • Automatic oven loading with manual cloth return;
  • Manual oven unloading;
  • Manual sideways movement;

Single Column Oven Loader SPM310

SPM 310 automatic oven loader with floor rail, complete with tilting rack. Horizontal translation and oven loading movements are manual, whereas the vertical movement and oven loading are motorized. The tray is reset automatically after oven loading. Loading width = 60cm.
Features:

  • Motorized lifting with automatic stop at the height chosen using the selector;
  • Automatic oven loading with automatic cloth return;
  • Manual oven unloading;
  • Manual sideways movement;

Single Column Oven Loader SPM500

SPM 500 automatic oven loader with floor rail, complete with tilting rack. Horizontal translation and oven loading movements are manual, whereas the vertical movement and oven loading/unloading are motorized. The tray reset is automatic after oven loading. Loading width = 60cm.
Features:

  • Motorized lifting with automatic stop at the height chosen using the selector;
  • Automatic oven loading and unloading with automatic cloth return;
  • Manual sideways movement;
  • Motorized front unloading of product;

Scissor trolley

This is a trolley which moves parallel to the front of the oven on which a spring pantograph is installed which lifts the tray holder to the height of the baking chamber to be loaded without any effort required from the operator. By moving the trolley sideways the door to the chamber to be loaded can be reached.

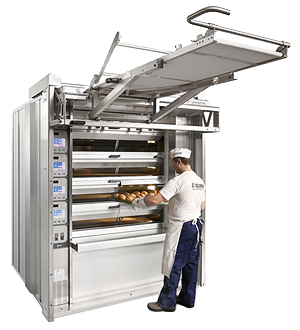

Integrated oven loader

System integrated in the oven for positioning the loading tray in front of the chamber to be loaded. It is made up of two counterweighted and balanced columns which position the loading tray at the required height without any effort required from the operator and a translating loading tray holder which makes it possible to position it directly in front of the selected door. The whole device can be lifted out of the way to free the front of the oven so that manual operations are not hindered.

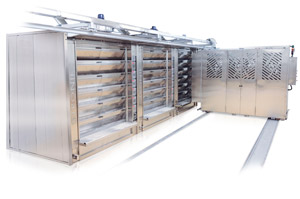

Multi-shelf oven loaders

Our range of “MULTI-SHELF OVEN LOADERS” includes a series of machines for loading and unloading products into/from shelf ovens. The main characteristic of these machines is having the same number of racks and shelves as the oven or ovens they are used with, consequently all the chambers are loaded/unloaded at the same time. These machines, while still being simple to use, offer high production capacities and are ideal for serving several parallel ovens which need to bake the same product. The main technical features of the "AUTOMATIC MULTI-SHELF OVEN LOADER" are as follows:

  • Widths available: 900 and 1200mm;
  • Number of loading and unloading racks equal to the number of shelves in the oven: 4, 5 or 6;
  • Chamber door opening rod;
  • Simultaneous longitudinal movement of the racks in oven mouth entry/exit or from the product loading/unloading stations driven by a synchronous motor with pinion and chain drive system;
  • Transversal movement (loader translation) driven by an asynchronous motor with floor rails and vulcanized wheels;
  • Rotation of the oven loading/unloading mats driven by an asynchronous motor with automatic tray reset system following the loading/unloading operation;
  • Asynchronous motors interlocking and control by means of an inverter;
  • Loader position controlled by an encoder and capacitive sensors;
  • Stainless steel machine guards;
  • Machine control panel with remote electro-mechanical pushbutton panel;
  • Oven loader management software with 2 operating modes: manual or semi-automatic (optional);
  • Machine and system fully compliant with EC standards in accordance with directive 2006/42/EC.

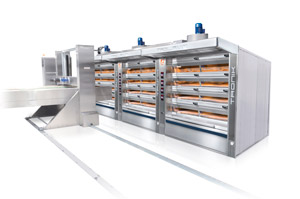

Robot Loader

Our range of “ROBOT LOADERS” includes a series of machines, configurations and solutions conceived to automate the process of loading and unloading products into/from shelf ovens. These machines are configurable and can be adapted to the needs of each customer or each layout and so meet the most varied requirements. Our “ROBOT LOADER” machines come in two versions:

  • “EASY” is the simpler version which is suitable for small/medium-sized plants while still maintaining high technological standards;
  • “FULL” is a more complete, high-performance version ideal for large plants with a high level of automation where automatic operating cycles are required.
